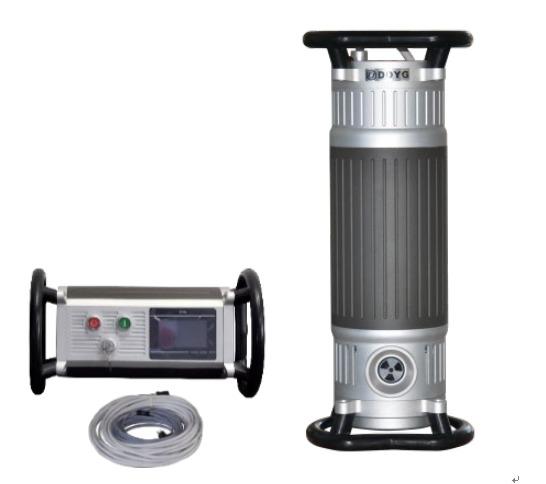

Light Weight Penetrate 22mm 480W 160KV High Voltage X Ray Constant Potential Flaw Detector
Top main features
*Can continuously expose at 35 ℃ and 160kv/3mA conditions;
*Wide input voltage range, can work with various generators for field operation
*Lightweight, strong penetration, and stable performance, ceramic tube, anti vibration and solid design
*The controller adopts a cylindrical design with unique creativity;
*The operation interface is intuitive and easy and friendly to operate;
*High penetration ability: Max.22mm
*High power efficiency, can be 95%,small cable diameter and light weight.
*Can continuously work 99 minutes, no rest time, improve the work efficiency to a large extent
*Continuously adjustable for tube voltage and tube current, the machine can penetrate thickness from 0.5mm to 22mm due to different expose time setting. Better image clarity.
*High frequency design will reduce most of fault because it do not have high voltage coil.
*Can work with HUAETC and other DR Panel image system directly.
Technical Specifications
| Item | Parameters |
| X ray Generator | Weight | 17kg |
| The external dimensions include the end ring | ф246x596(DXL) |
| X ray Controller | Weight | 9.6kg |
| Dimension | Including end ring: ф264x458(mm),excluding end ring: ф188x350 (mm) |
| Focus Size | 3.0mm |
| Radiation Angle | 44°° |
| Maximum penetration (Fe) | 22mm(A3) F=600mm |
| kV adjustment range | 80~160 kv ±1kv |
| mA adjustment range | 0.5~3 mA ±0.1mA |
| Max power | 480W |
| Protect temperature | 75℃ |
| Duty Circle | 100% at an ambient temperature of 20 ℃ |
| Storage temperature | -25°C~ +70°C |
| Power supply | AC200~264 V/50~60 Hz |
The whole machine features: use high frequency, low Ma, can continuous work. Wide range and high quality hardware design has long life and very low failure rate
Strong anti-jamming, power grid can work in 180V~260V, Light cable and light weight of the head
The maximum penetration force: 22mm (F600, D > 2)
Random spare parts
10 core signal connecting cable
2 core power cable
A ground line
A set of Appendage package
The whole equipment is guaranteed for one year (except for man-made causes and force majeure reasons).
