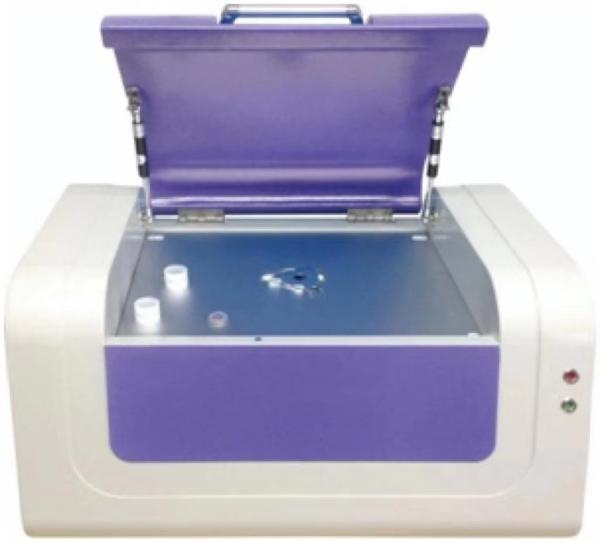

Rohs Xrf Spectrometer Alloy Elements Analyzer Hxrf-360

Name: Rohs Xrf Spectrometer Alloy Elements Analyzer Hxrf360
Brand: HUATEC
Price: 1 USD

Brand Name : HUATEC

Model Number : HXRF-360

Certification : ISO, CE, GOST

Place of Origin : Beijing

MOQ : 1pcs

Payment Terms : T/T, Paypal, Western Union

Supply Ability : 100pcs per month

Delivery Time : 6days

Packaging Details : Standard export package

Scope of elemental analysis : Sulfur (S) to Uranium (U)

Scope of application : European Union RoHS/ELV directive, halogen-free, eight heavy metals and metal material composition analysis and other environmental protection directives accurate testing

Content analysis range : 1ppm～99.99%

Working stability : The total fluorescence intensity was 0.1%

Minimum detection limit : Cd/Cr/Hg/Br≤1ppm,Pb/Sb/Se/Ba≤2ppm,Cl≤5ppm

Instrument resolution : 145±5eV

Working conditions : Operating temperature: 15-30℃; Relative humidity: ≤80%; Power supply: AC :220V ±5V

Machine size : 660mm×480mm×330mm

Super-large measuring chamber : 440mm×350mm×85mm

Weight : 60kgs

Testing time : 100 ~ 200 seconds (time can be adjusted according to need)

Contact Now

ROHS And Alloy Elements Analyzer X Ray Fluorescence Spectrometer HXRF-360

Performance advantages:

1. ROHS and alloy elements can be measured. ROHS/ halogen-free element analysis can be tested at one time without separate testing.

2, core accessories are imported parts

3, the instrument is unintentionally opened in the test process, the instrument is equipped with an open cover cut-off switch, which can prevent radiation safety.

4. Conduct free testing and adjustment of instruments every year

5. The designed service life of X-ray tube is 25,000 hours. Unique technology to extend the service life of the light tube:

(1) Automatic anti-aging function of light tube.

(2) Automatically follow up different materials to select different light tube current.

(3) Strong heat dissipation system to ensure the normal working conditions of the light tube;

Technical indicators

Type:	HXRF-360
Scope of elemental analysis:	Sulfur (S) -Uranium (U)
Scope of application:	European Union RoHS/ELV directive, halogen-free, eight heavy metals and metal material composition analysis and other environmental protection directives accurate testing
Content analysis range:	1ppm～99.99%
Working stability:	The total fluorescence intensity was 0.1%
Minimum detection limit:	Cd/Cr/Hg/Br≤1ppm,Pb/Sb/Se/Ba≤2ppm,Cl≤5ppm
Instrument resolution:	145±5eV
Multichannel analyzer:	2048
Working conditions:	Operating temperature: 15-30℃; Relative humidity: ≤80%; Power supply: AC :220V ±5V
Appearance size:	660mm×480mm×330mm
Super-large measuring chamber:	440mm×350mm×85mm
Weight:	60Kg
Test time:	100 ~ 200 seconds (time can be adjusted according to need)

Standard configuration

configuration	Number	unit
Instrument hardware part of the main configuration	1	Set
1. Imported high resolution electric refrigeration semiconductor detector	1	Set
2. Imported ROHS+ halogen special X-ray tube	1	pc
3. Imported high voltage power supply system	1	pc
4. 2048 digital multichannel analyzer	1	Set
5. High precision CCD	1	pc
6. Filter automatic switching group	5	group
7. Automatic switch of collimator: one collimator with diameter of 0.2, 0.5, 1, 2, 6 and 8mm	6	pc
Instrument peripheral configuration
Computer: Lenovo Business Computer	1	Set
2. Canon color inkjet printer	1	set
3. Silver correction sheet	1	pice
4. Plastic standard sample: EC681M	1	pice
5. Sample cup, Mylar membrane	A number of
The software configuration
RoHS/halogen	1	Set
